USB 3.0 CMOS Microscope Camera Camera
We are happy to introduce the Optike Brand USB 3.0 CMOS Microscope Camera. This camera is a compact and high-performance USB 3.0 CMOS camera, and it adopts a Sony or On Semi CMOS sensor as the image-picking device, and USB 3.0 is used as the data transfer interface. The camera hardware resolutions range from 3.5 MP to 10 MP and come with a compact CNC aluminum alloy housing. It comes with an advanced video and image processing application, providing Windows, Linux, MacOS, and Android multiple platform SDKs (Native C/C++, C#/VB.NET, Python, Java, DirectShow,Twain, etc.). mainly used in bright field light environments and microscope image capture and analysis with a higher frame rate.
| SKU: | KMA400 |
Product Description
Optike Brand USB3.0 Microscope CMOS Camera With WIFI Broadcasting, such as the USB 3.0 CMOS Microscope Camera – KMA400, adopts ultra-high performance. CMOS sensor as the image-picking device. WIFI is used as the data transfer interface. When the camera is attached to the eyepiece of a microscope and started. It will generate a WiFi signal for sending. High-resolution images from a microscope to WiFi-enabled devices such as smartphones, tablets, and computers with iOS, Android, OS X, Linux, and Windows operating systems, streaming images to up to six devices simultaneously. The camera includes excellent image software for quantifying, measuring, and annotating images and for using with an interactive whiteboard. It also works with the free, downloadable Toupviewt app for viewing, capturing, and editing images.
| Sensor & Size (mm) | Pixel (μm) | G Sensitivity Dark Signal | FPS@Resolution | Binning | Exposure |
| 5.1M/AR0521(C) 1/2.5“ (5.70×4.28) | 2.2×2.2 | 18.8ke-/lux 73dB 40dB | 15.5@2592×1944 49.5@1296×972 97.5@648×486 | 1×1 2×2 4×4 | 0.1ms~2000ms |
Example Images

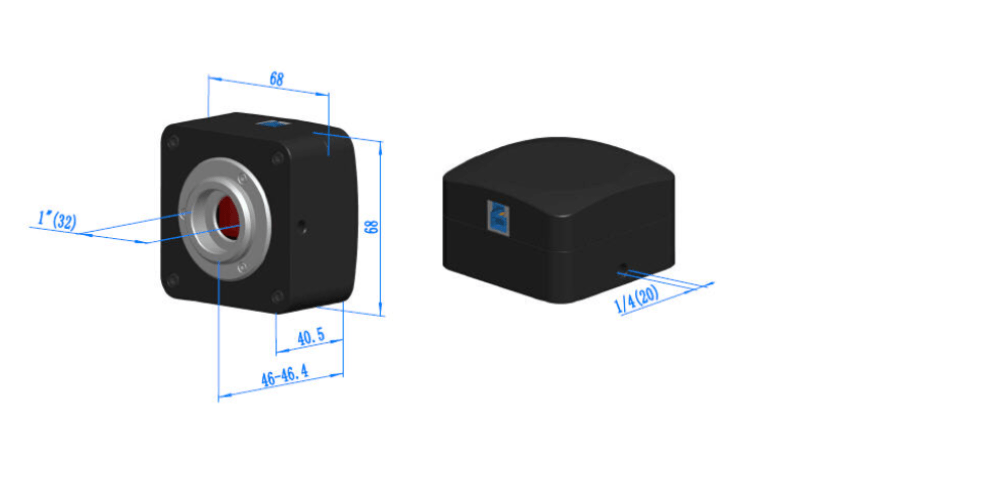

Dimension of USB3.0 CMOS Microscope Camera
Other Accessories
Product Features
| Camera-Application | PC & Mac Display |
| Mounting Size | 23mm, 30.5mm, 30mm, C-Mount |
| Camera-Pixel | 5.0MP |
| Camera-Reduction Lens | 0.75X |
| Camera-Sensor | CMOS |
| Camera Type | Brightfield |
