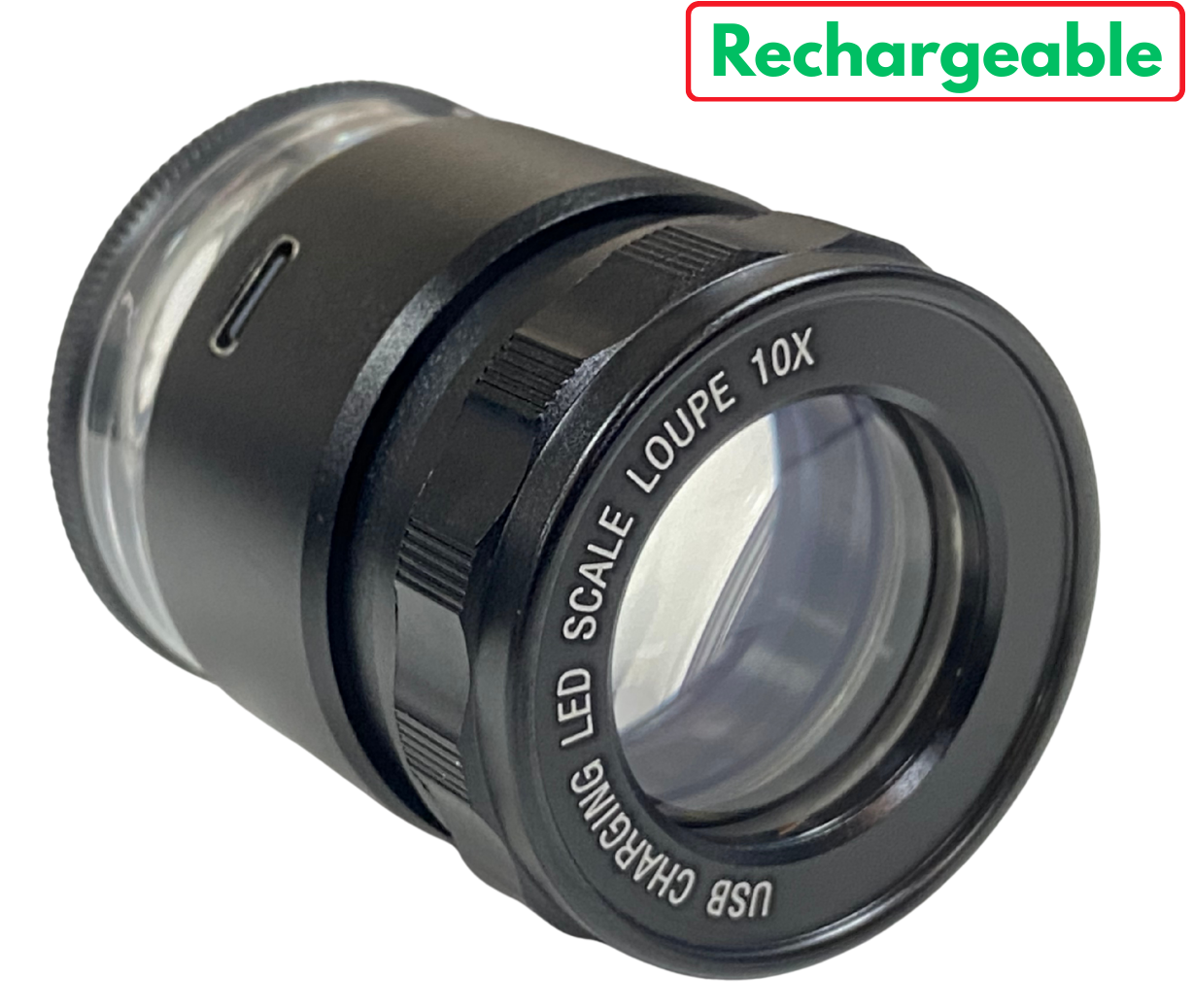

10x-30mm Magnifier Loupe with Scale LC 0.1mm with 8 LED’s
The measurement scale is made of glass and has a graduation 0.1 mm with a measuring length of 30 mm.
The housing contains a ring consisting of 8 LEDs (and 4 x AG9 batteries), which provide bright, high-contrast illumination of the entire measuring field.
The conflict between high resolution and wide field of view was able to be fully resolved in this product making it a most efficient inspection loupe.
Material: imported optical lens, ABS
Product Size: 60 x 45 mm
Appearance:Cylindrical
Magnification: 10x
LED Light: 8 PCS
Power supply: Rechargeable USB C
Feature: Riticle, Crosshair

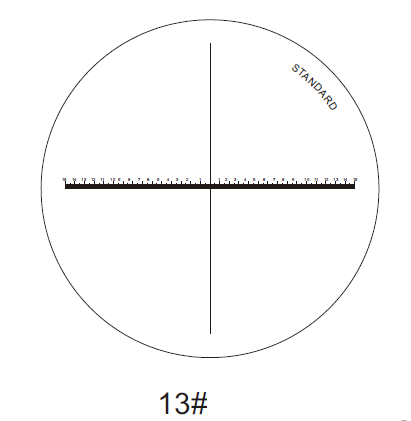

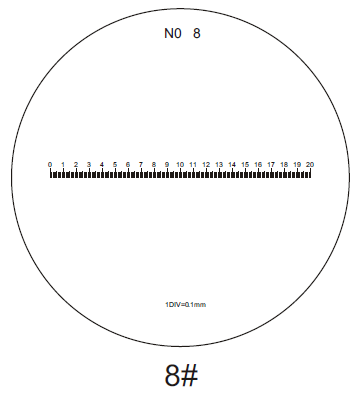

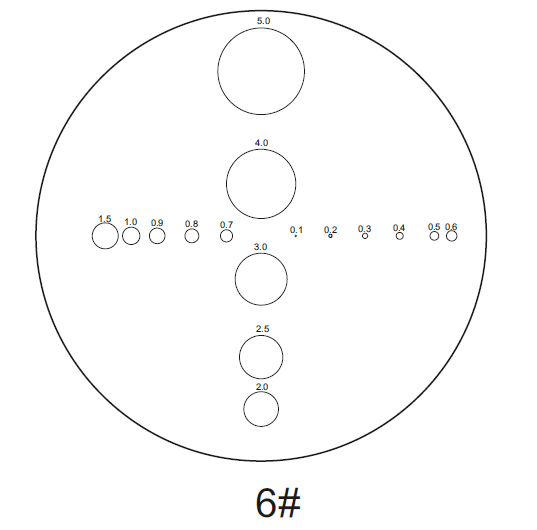

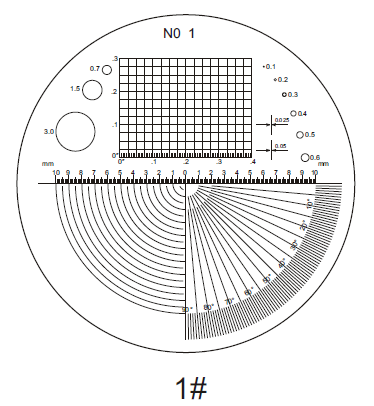

We have scale option of :
| SKU: | KHM7174 |
Product Description
10x-30mm Magnifier Loupe with Scale LC 0.1mm with 8 LED’s
10x-30mm Magnifier Loupe with Scale measuring magnifier is with LED illumination providing outstanding display quality and setting a new benchmark in this price range.
An achromatic (chromatic aberration corrected) clear glass optical system consisting of 4 elements and 2 component assemblies ensures distortion free viewing right up to the edge.
The Measuring magnifier has a smooth focusing ring for manual adjustment to ensure a clear image.
For higher transmission the lenses are coated with anti-reflection coating.
- Magnification: 10x
- Lens Ø: 30 mm
- Number of LEDs: 8
- Smallest graduation: 0.1 mm
- Total length measurable: 30 mm
- Field of vision: 34 mm
- Lens: 3 double lenses
- Focus ring: yes
- Appearance: Cylindrical
- Dimension: 60 x 45 mm
- Battery type: Rechargeable USB C
